Ref. 27030

TAP-INSERT HSS ISO 529

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

High Speed Steel HSS
Entry form D(3,5-5h)
Tolerance 3

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

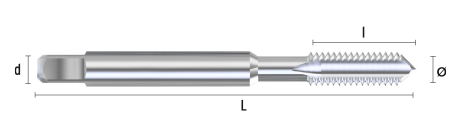

Code	Ø (mm)	L (mm)	l (mm)
27030000400	UNF Nº4-48	53	13	a 3.15	1
27030000600	UNF Nº6-40	53	13	a 3.55	1
27030000800	UNF Nº8-36	62	17	a 4.50	1
27030001000	UNF Nº10-32	66	19	a 5.00	1
27030010200	UNF 1/2-20	90	25	a 9.00	1
27030010400	UNF 1/4-28	69	19	a 6.30	1
27030030400	UNF 3/4-16	104	29	a 11.20	1
27030030800	UNF 3/8-24	82	22	a 6.30	1
27030050800	UNF 5/8-18	104	29	a 11.20	1
27030051600	UNF 5/16-24	76	20	a 8.00	1
27030070800	UNF 7/8-14	120	35	a 14.00	1
27030071600	UNF 7/16-20	84	24	a 7.10	1
27030091600	UNF 9/16-18	104	29	a 10.00	1
27030100012	UNF 1''-12	127	37	a 16.00	1
27030100014	UNF 1''-14	127	37	a 16.00	1
