Ref. 22120

TAP HSSE

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
2-8	1-5									2-6

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High Speed Steel HSSE
Tolerance 7H
Thin shan

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength,

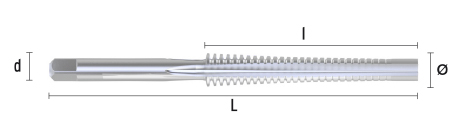

Code	Ø (mm)	L (mm)	l (mm)
22120010020	Tr 10x2	110	63	a 5.50	1
22120010030	Tr 10x3	125	75	a 5.50	1
22120012030	Tr 12x3	165	111	a 6.20	1
22120014030	Tr 14x3	140	85	a 8.00	1
22120014040	Tr 14x4	170	112	a 8.00	1
22120016040	Tr 16x4	180	116	a 9.00	1
22120018040	Tr 18x4	190	120	a 9.00	1
22120020040	Tr 20x4	200	124	a 11.00	1
22120022050	Tr 22x5	235	155	a 12.00	1
22120024050	Tr 24x5	245	160	a 14.50	1
22120026050	Tr 26x5	255	165	a 16.00	1
22120028050	Tr 28x5	265	170	a 18.00	1
22120030060	Tr 30x6	290	185	a 18.00	1
22120032060	Tr 32x6	300	191	a 20.00	1
