Ref. 22490

TAP HSS ISO529C
PMKNSH
>800>1.000>1.200>1.400>950>1.200>500>800>1.400AlCuMg/ZnPlasticTiNi50 HRC55 HRC60 HRC

5-20







5-15


10-15

5-15


10-15





  • Vc (m/mm)
  • Best
  • Alternative

Technical Features:

  • Cobalt High Speed Steel HSSE
  • Entry form C(2-3h)
  • Helicoidal groove at 35º
  • Through holes with thread depth up to 3x

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength,

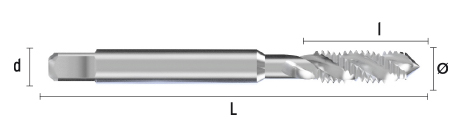

CodeØ (mm)L (mm)l (mm)
22490003005M3.00x0.50565a 2.001
22490004070M4.00x0.70637a 2.101
22490005008M5.00x0.80708a 2.701
22490006010M6.00x1.008010a 3.401
22490008012M8.00x1.259013a 4.901
22490010015M10.00x1.5010016a 5.501
22490012017M12.00x1.7510018a 7.001
22490014020M14.00x2.0011020a 9.001
22490016020M16.00x2.0011020a 9.001
22490018025M18.00x2.5012525a 11.001
22490020025M20.00x2.5014025a 12.001
22490022025M22.00x2.5014025a 14.501
22490024030M24.00x3.0013045a141
22490027030M27.00x3.0013545a161
22490030035M30.00x3.5013848a161
