Ref. 22480

TAP HSS ISO 529B

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
5-20							5-15		10-15	5-15		10-15

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High Speed Steel HSSE
Corrected entry form B(3,5-5h)
Tolerance 6H
Through holes with thread depth up to 3x

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength,

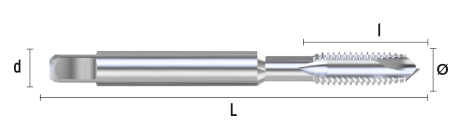

Code	Ø (mm)	L (mm)	l (mm)
22480003005	M3.00x0.50	48	11	a 2.50	1
22480004070	M4.00x0.70	53	13	a 3.15	1
22480005008	M5.00x0.80	58	16	a 4.00	1
22480006010	M6.00x1.00	66	19	a 5.00	1
22480008012	M8.00x1.25	72	22	a 6.30	1
22480010015	M10.00x1.50	80	24	a 8.00	1
22480012017	M12.00x1.75	89	29	a 7.10	1
22480014020	M14.00x2.00	95	30	a 9.00	1
22480016020	M16.00x2.00	102	32	a 10.00	1
22480018025	M18.00x2.50	110	37	a 11.20	1
22480020025	M20.00x2.50	112	37	a 11.20	1
22480022025	M22.00x2.50	118	38	a 12.50	1
22480024030	M24.00x3.00 6H	130	45	a14	1
22480027030	M27.00x3.00 6H	135	45	a16	1
22480030035	M30.00x3.50 6H	138	48	a16	1
