HEPYC | TAP HSSE-PM DIN376C HUNIX PM

Ref. 22570

TAP HSSE-PM DIN376C HUNIX PM

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
20-40	15-30	10-20	5-10	5-15	5-15	10-30	10-30	5-15	10-30	10-30	5-15	10-30	2-8	2-15

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

HSSE-PM Powder Metal Steel
Entry Form C (2-3h)
Helical groove at 45º
Tolerance 6HX
Thin shank
Blind holes with thread depth up to 3xd
Microfinisch finish
Hard Lube coatin

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of1,400N / mm2, Stainless Steels up to 1,100N / mm2, cast iron, Titanium Alloys up to 1,100N / mm2, non-ferrous materials.

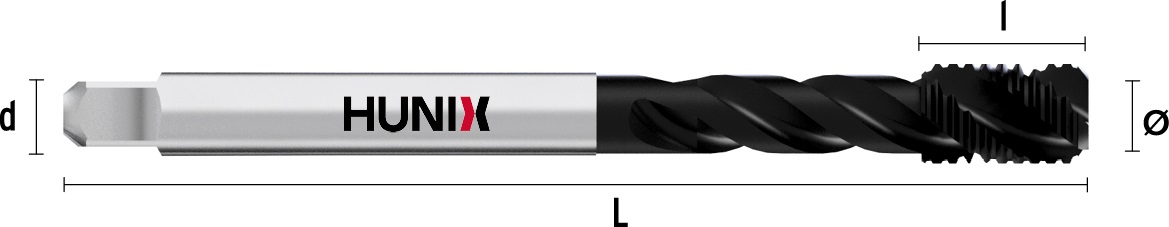

Code	Ø (mm)	L (mm)	l (mm)
22570008012	M8*125	90	15	a 4,9	1
22570010010	M10*100	90	10	a 5,5	1
22570010015	M10*150	100	17	a 5,5	1
22570012010	M12*100	100	10	a 7	1
22570012012	M12*125	100	15	a 7	1
22570012015	M12*150	100	15	a 7	1
22570012017	M12.00*1.75	100	18	a 7.00	1
22570014015	M14*150	100	15	a 9	1
22570014020	M14.00*2.00	110	20	a 9.00	1
22570016015	M16*150	100	15	a 9	1
22570016020	M16.00*2.00	110	20	a 9.00	1
22570018015	M18*150	110	17	a 11	1
22570018025	M18*250	125	25	a 11	1
22570020015	M20*150	125	17	a 12	1
22570020025	M20*250	140	25	a 12	1
22570022025	M22*250	140	25	a 18.00	1
22570024030	M24*300	160	30	a 18.00	1
