Ref. 22530

TAP HSSE DIN 376/374-C HUNIX VAP
PMKNSH
>800>1.000>1.200>1.400>950>1.200>500>800>1.400AlCuMg/ZnPlasticTiNi50 HRC55 HRC60 HRC

10-25

10-15



5-10

5-8


10-15



10-20


10-15





  • Vc (m/mm)
  • Best
  • Alternative

Technical Features:

  • Cobalt High Speed Steel HSSE
  • Entry Form C (2-3h).
  • Helical groove at 35º
  • Tolerance 6H
  • Thin shank
  • Blind holes with thread depth up to 3xd
  • Micronish tecnology
  • VAP treatmen

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength, Stainless Steels, Cast Iron and Non-Ferrous Materials

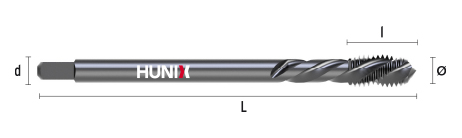

CodeØ (mm)L (mm)l (mm)
22530003005M3.00x0.50565a 2.001
22530004007M4.00x0.70637a 2.101
22530005008M5.00x0.80708a 2.701
22530006010M6.00x1.008010a 3.401
22530008010M8.00x1.009013a 4.901
22530008012M8.00x1.259013a 4.901
22530010010M10.00x1.009016a 5.501
22530010012M10.00x1.2510016a 5.501
22530010015M10.00x1.5010016a 5.501
22530012010M12.00x1.0010018a 7.001
22530012012M12.00x1.2510018a 7.001
22530012015M12.00x1.5010018a 7.001
22530012017M12.00x1.7510018a 7.001
22530014010M14.00x1.0010010a 9.001
22530014012M14.00x1.2510022a 9.001
22530014015M14.00x1.5010020a 9.001
22530014020M14.00x2.0011020a 9.001
22530016010M16.00x1.0010010a 9.001
22530016015M16.00x1.5010020a 9.001
22530016020M16.00x2.0011020a 9.001
22530018010M18.00x1.0011013a 11.001
22530018015M18.00x1.5011025a 11.001
22530018025M18.00x2.5012525a 11.001
22530020010M20.00x1.0012513a 12.001
22530020015M20.00x1.5012522a 12.001
22530020025M20.00x2.5014025a 12.001
22530022010M22.00x1.0012513a 14.501
22530022015M22.00x1.5012517a 14.501
22530022025M22.00x2.5014025a 14.501
22530024015M24.00x1.5014020a 14.501
22530024020M24.00x2.0014020a 14.501
22530024030M24.00x3.0016030a 14.501
22530027030M27.00x3.0016030a 16.001
22530030035M30.00x3.5018035a 18.001
