Ref. 21820

TAP HSSE DIN371C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
									10-20	6-8	10-20	10-15

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High Speed Steel HSSE
Entry Form C (2-3h)
Helical groove at 45º
Tolerance 6H
Reinforced shank
Blind holes with thread depth up to 3x

Applications:

Aluminum and Aluminum Alloys with Si <10%. Magnesium alloys

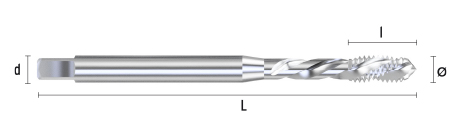

Code	Ø (mm)	L (mm)	l (mm)
21820003005	M3.00x0.50	56	11	a 2.70	1
21820004007	M4.00x0.70	63	13	a 3.40	1
21820005008	M5.00x0.80	70	14	a 4.90	1
21820006010	M6.00x1.00	80	16	a 4.90	1
21820008012	M8.00x1.25	90	18	a 6.20	1
21820010015	M10.00x1.50	100	27	a 8.00	1
