Ref. 21780

TAP HSSE-PM DIN371C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
		6-10	4-6		4-6			10-20				10-15		4-8

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

HSSE-PM Powder Metallic Steel
Entry Form C (2-3h).
Helical groove at 15º
Tolerance 6HX
Reinforced shank
Blind holes with thread depth up to 3xd
Microfinisch finish
TiCN coatin

Applications:

Alloyed and alloyed steels up to a resistance of 1,400N / mm2

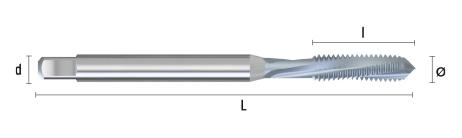

Code	Ø (mm)	L (mm)	l (mm)
21780003005	M3.00x0.50	56	5	a 2.70	1
21780004007	M4.00x0.70	63	7	a 3.40	1
21780005008	M5.00x0.80	70	8	a 4.90	1
21780006010	M6.00x1.00	80	10	a 4.90	1
21780008012	M8.00x1.25	90	13	a 6.20	1
21780010015	M10.00x1.50	100	15	a 8.00	1
