Ref. 21700

TAP HSSE DIN371C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25	10-15			5-10			10-15		10-15	10-20		10-15

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High Speed Steel HSSE
Entry Form C (2-3h).
Helical groove at 35º
Tolerance 6G
Reinforced shank
Blind holes with thread depth up to 3x

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

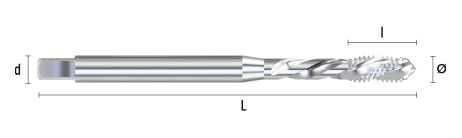

Code	Ø (mm)	L (mm)	l (mm)
21700003005	M3.00x0.50	56	5	a 2.70	1
21700004007	M4.00x0.70	63	7	a 3.40	1
21700005008	M5.00x0.80	70	8	a 4.90	1
21700006010	M6.00x1.00	80	10	a 4.90	1
21700008012	M8.00x1.25	90	13	a 6.20	1
21700010015	M10.00x1.50	100	15	a 8.00	1
