HEPYC | TAP HSSE DIN371C

Ref. 21060

TAP HSSE DIN371C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25	10-15			5-10			10-15		10-15	10-20		10-15

Technical Features:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

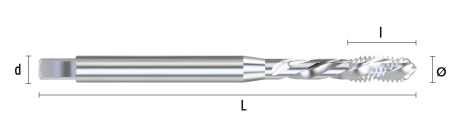

Code	Ø (mm)	L (mm)	l (mm)
21060002004	M2.00x0.40	45	5	a 2.10	1
21060002204	M2.20x0.40	45	10	a 2.10	1
21060002304	M2.30x0.40	45	10	a 2.10	1
21060002504	M2.50x0.45	50	5	a 2.10	1
21060002604	M2.60x0.45	50	5	a 2.10	1
21060003003	M3.00x0.35	56	5	a 2.70	1
21060003005	M3.00x0.50	56	5	a 2.70	1
21060003503	M3.50x0.35	56	5	a 3.00	1
21060003506	M3.50x0.60	56	6	a 3.00	1
21060004005	M4.00x0.50	63	7	a 3.40	1
21060004070	M4.00x0.70	63	7	a 3.40	1
21060004570	M4.50x0.75	70	7	a 4.90	1
21060005005	M5.00x0.50	70	8	a 4.90	1
21060005008	M5.00x0.80	70	8	a 4.90	1
21060006010	M6.00x1.00	80	10	a 4.90	1
21060006075	M6.00x0.75	80	10	a 4.90	1
21060007010	M7.00x1.00	80	10	a 5.50	1
21060008012	M8.00x1.25	90	13	a 6.20	1
21060008075	M8.00x0.75	70	10	a 6.20	1
21060009012	M9.00x1.25	90	13	a 7.00	1
21060010015	M10.00x1.50	100	15	a 8.00	1
