Ref. 22550

HSSE-PM DIN376B MULTI
PMKNSH
>800>1.000>1.200>1.400>950>1.200>500>800>1.400AlCuMg/ZnPlasticTiNi50 HRC55 HRC60 HRC

20-40

15-30

10-20

5-10

5-15

5-10

10-30

10-30

5-15

10-30

10-30

5-15

10-30

2-8

2-15



  • Vc (m/mm)
  • Best
  • Alternative

Technical Features:

  • HSSE-PM Powder Metal Steel
  • Corrected entry form B (3.5-5h)
  • Tolerance 6HX
  • Thin shank
  • Through holes with thread depth up to 3xd
  • Microfinisch technology
  • Hard Lube coatin

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of1,400N / mm2, Stainless Steels up to 1,100N / mm2, cast iron, Titanium Alloys up to 1,100N / mm2, non-ferrous materials.

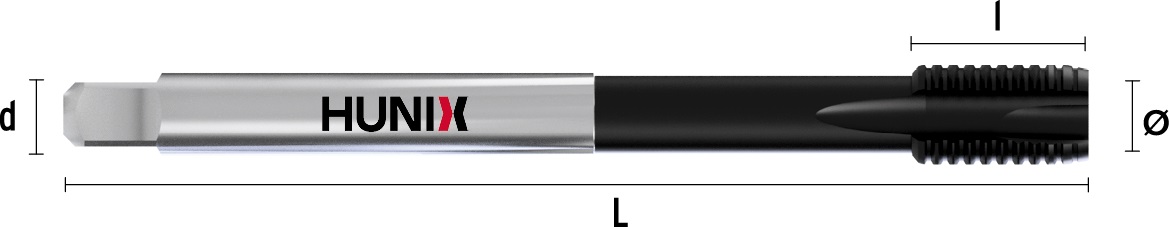

CodeØ (mm)L (mm)l (mm)
22550012017M12.00x1.7511027a 7.001
22550014020M14.00x2.0011030a 9.001
22550016020M16.00x2.0011030a 9.001
