Ref. 22540

HSSE-PM DIN371B MULTI
PMKNSH
>800>1.000>1.200>1.400>950>1.200>500>800>1.400AlCuMg/ZnPlasticTiNi50 HRC55 HRC60 HRC

20-40

15-30

10-20

5-10

5-15

5-10

10-30

10-30

5-15

10-30

10-30

5-15

10-30

2-8

2-15



  • Vc (m/mm)
  • Best
  • Alternative

Technical Features:

  • HSSE-PM Powder Metal Steel
  • Corrected entry form B (3.5-5h)
  • Tolerance 6HX
  • Reinforced shank
  • Through holes with thread depth up to 3xd
  • Microfinisch technology
  • Hard Lube coatin

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of1,400N / mm2, Stainless Steels up to 1,100N / mm2, cast iron, Titanium Alloys up to 1,100N / mm2, non-ferrous materials.

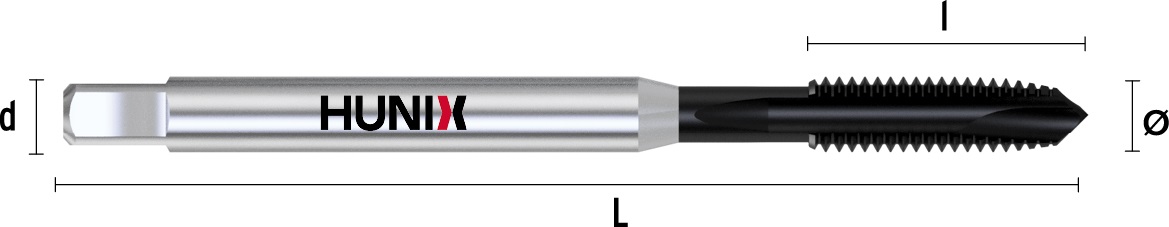

CodeØ (mm)L (mm)l (mm)
22540003005M3.00x0.505611a 2.701
22540004007M4.00x0.706313a 3.401
22540005008M5.00x0.807014a 4.901
22540006010M6.00x1.008016a 4.901
22540008012M8.00x1.259018a 6.201
22540010015M10.00x1.5010022a 8.001
