Ref. 21750

HSSE-PM DIN376D
PMKNSH
>800>1.000>1.200>1.400>950>1.200>500>800>1.400AlCuMg/ZnPlasticTiNi50 HRC55 HRC60 HRC



6-10

4-6


4-6



10-20


4-6


10-15


4-8



  • Vc (m/mm)
  • Best
  • Alternative

Technical Features:

  • HSSE-PM Powder Metal Steel
  • Corrected entry form B (3.5-5h)
  • Tolerance 6HX
  • Thin shank
  • Through holes with thread depth up to 3xd
  • Microfinisch finish
  • TiCN coatin

Applications:

Alloy steels up to a resistance of 1,400N / mm2

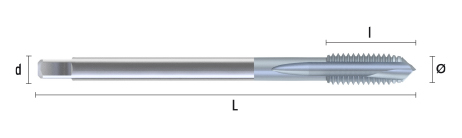

CodeØ (mm)L (mm)l (mm)
21750008012M8.00x1.259022a 4.901
21750010015M10.00x1.5010022a 5.501
21750012017M12.00x1.7511027a 7.001
21750014020M14.00x2.0011030a 9.001
21750016020M16.00x2.0011030a 9.001
21750018025M18.00x2.5012534a 11.001
21750020025M20.00x2.5014034a 12.001
