Ref. 21690

TAP HSSE DIN 376B

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25	10-15			5-10			10-15		10-15	10-20		10-15

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High speed steel HSSE
Corrected entry form B(3,5-5h)
Tolerance 6G
Thin shank
Through holes with thread depth up to 3x

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

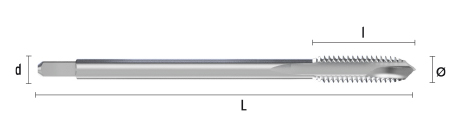

Code	Ø (mm)	L (mm)	l (mm)
21690008012	M8.00x1.25	90	20	a 4.90	1
21690010015	M10.00x1.50	100	22	a 5.50	1
21690012017	M12.00x1.75	110	27	a 7.00	1
21690014020	M14.00x2.00	110	30	a 9.00	1
21690016020	M16.00x2.00	110	30	a 9.00	1
21690018025	M18.00x2.50	125	34	a 11.00	1
21690020025	M20.00x2.50	140	34	a 12.00	1
