Ref. 21160

TAP HSSE DIN 371-B HUNIX TIN+

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
15-30	12-18	8-12		6-12	6-10	10-15	15-20		15-25	15-25		12-18

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High speed steel HSSE
Corrected entry form B(3,5-5h)
Tolerance 6H
Reinforced shank
Through holes with thread depth up to 3xd
Microfinish tecnology
Bilayer Titanium treatment TIN

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength, Stainless Steels, Cast Iron and Non-Ferrous Materials

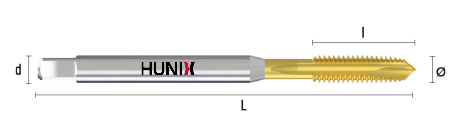

Code	Ø (mm)	L (mm)	l (mm)
21160002004	M2.00x0.40	45	10	a 2.10	1
21160002504	M2.50x0.45	50	9	a 2.10	1
21160003005	M3.00x0.50	56	11	a 2.70	1
21160003506	M3.50x0.60	56	12	a 3.00	1
21160004007	M4.00x0.70	63	13	a 3.40	1
21160005008	M5.00x0.80	70	14	a 4.90	1
21160006010	M6.00x1.00	80	16	a 4.90	1
21160008012	M8.00x1.25	90	18	a 6.20	1
21160010015	M10.00x1.50	100	22	a 8.00	1
