Ref. 21035

TAP HSSE DIN376/374B
PMKNSH
>800>1.000>1.200>1.400>950>1.200>500>800>1.400AlCuMg/ZnPlasticTiNi50 HRC55 HRC60 HRC

10-25

10-15



5-10



10-15


10-15

10-20


10-15





  • Vc (m/mm)
  • Best
  • Alternative

Technical Features:

  • Cobalt High speed steel HSSE
  • Corrected entry form B(3,5-5h)
  • Tolerance 6H
  • Thin shank
  • Through holes with thread depth up to 3x

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

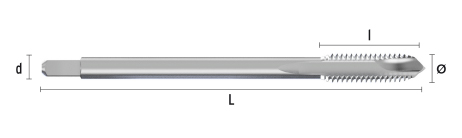

CodeØ (mm)L (mm)l (mm)
21035012017M12.00x1.7511029a 7.001
21035016020M16.00x2.0011030a 9.001
21035020025M20.00x2.5014034a 12.001
21035024030M24.00x3.0016038a 14.501
