Ref. 21025

TAP HSSE DIN 371C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25	10-15						10-15			10-20

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High speed steel HSSE
Straight entry Form C(2-3h)
Tolerance 6H
Reinforced shank
Blind and through holes with thread depth up to 1.5xd
Left hande

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon ste up to a strength of 800N / mm2

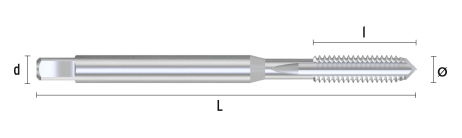

Code	Ø (mm)	L (mm)	l (mm)
21025003005	M3.00x0.50	56	11	a 2.70	1
21025004007	M4.00x0.70	63	13	a 3.40	1
21025005008	M5.00x0.80	70	14	a 4.90	1
21025006010	M6.00x1.00	80	16	a 4.90	1
21025008012	M8.00x1.25	90	18	a 6.20	1
21025010015	M10.00x1.50	100	22	a 8.00	1
