HEPYC | TAP HSSE DIN371C

Ref. 21020

TAP HSSE DIN371C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25	10-15						10-15			10-20

Technical Features:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

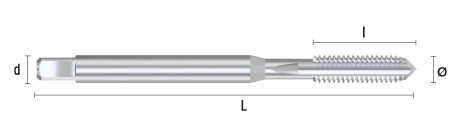

Code	Ø (mm)	L (mm)	l (mm)
21020001002	M1.00x0.25	40	6	a 2.10	1
21020001102	M1.10x0.25	40	6	a 2.10	1
21020001202	M1.20x0.25	40	5	a 2.10	1
21020001403	M1.40x0.30	40	7	a 2.10	1
21020001603	M1.60x0.35	40	8	a 2.10	1
21020001703	M1.70x0.35	40	8	a 2.10	1
21020001803	M1.80x0.35	40	8	a 2.10	1
21020002004	M2.00x0.40	45	8	a 2.10	1
21020002204	M2.20x0.45	45	9	a 2.10	1
21020002304	M2.30x0.40	45	9	a 2.10	1
21020002504	M2.50x0.45	50	9	a 2.10	1
21020002604	M2.60x0.45	50	9	a 2.10	1
21020003003	M3.00*0.35	56	11	a 2.70	1
21020003005	M3.00x0.50	56	11	a 2.70	1
21020003506	M3.50x0.60	56	12	a 3.00	1
21020004005	M4.00x0.50	63	13	a 3.40	1
21020004070	M4.00x0.70	63	13	a 3.40	1
21020004507	M4.50x0.75	70	14	a 4.90	1
21020005005	M5.00x0.50	70	14	a 4.90	1
21020005008	M5.00x0.80	70	14	a 4.90	1
21020006007	M6.00x0.75	80	14	a 4.90	1
21020006010	M6.00x1.00	80	16	a 4.90	1
21020007010	M7.00x1.00	80	16	a 5.50	1
21020008007	M8.00x0.75	80	18	a 6.20	1
21020008012	M8.00x1.25	90	18	a 6.20	1
21020009012	M9.00x1.25	90	18	a 7.00	1
21020010015	M10.00x1.50	100	22	a 8.00	1
