Ref. 22620

TAP HSSE DIN 371-B HUNIX VAP

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25	10-15			5-10	5-8		10-15		10-15	10-20		10-15

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High Speed steel HSSE
Corrected entry form B(3,5-5h)
Tolerance 2B
Reinforced shank
Through holes with thread depth up to 3xd
Microfinish technology
VAP treatmen

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength, Stainless Steels, Cast Iron and Non-Ferrous Materials

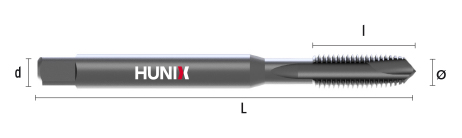

Code	Ø (mm)	L (mm)	l (mm)
22620000400	UNC Nº4-40	56	10	a 2.70	1
22620000500	UNC Nº5-40	56	11	a 2.7	1
22620000600	UNC Nº6-32	56	12	a 3.00	1
22620000800	UNC Nº8-32	63	13	a 3.4	1
22620001000	UNC Nº10-24	70	14	a 4.9	1
22620001200	UNC Nº12-24	80	18	a 4.90	1
22620010400	UNC 1/4	80	18	a 5.5	1
22620030800	UNC 3/8	100	21	a 8.00	1
22620051600	UNC 5/16-18	90	20	a 6.2	1
