Ref. 21390

TAP HSSE DIN376C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25	10-15			5-10			10-15		10-15	10-20		10-15

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High Speed Steel HSSE
Entry form C(2-3h)
Helical groove at 35º
Thin shank
Blind holes with thread depth up to 3x

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength,

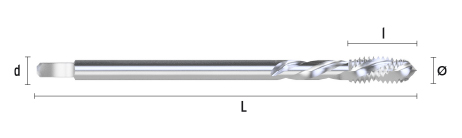

Code	Ø (mm)	L (mm)	l (mm)
21390010200	BSW 1/2-12	110	22	a 7.00	1
21390030400	BSW 3/4-10	125	32	a 11.00	1
21390050800	BSW 5/8-11	110	28	a 9.00	1
21390070800	BSW 7/8-9	140	34	a 14.50	1
21390071600	BSW 7/16-14	100	20	a 6.20	1
21390091600	BSW9 /16-12	110	23	a 9.00	1
21390100000	BSW 1-8	160	36	a 14.50	1
