Ref. 21355

HSSE DIN 376C
PMKNSH
>800>1.000>1.200>1.400>950>1.200>500>800>1.400AlCuMg/ZnPlasticTiNi50 HRC55 HRC60 HRC

10-25

10-15






10-15



10-20







  • Vc (m/mm)
  • Best
  • Alternative

Technical Features:

  • Cobalt High Speed Steel HSSE
  • Straigh entry form C(2-3h)
  • Thin shank
  • Blind and through holes with thread depth up to 1,5xd
  • Left Hande

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength,

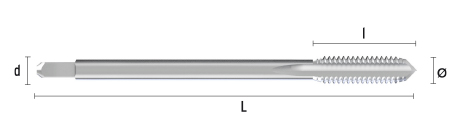

CodeØ (mm)L (mm)l (mm)
21355010200BSW1/2-1211027a 7,001
21355010400BSW1/4-208018a 3,401
21355030400BSW3/4-1012535a 11,001
21355030800BSW 3/8-1610022a 5,501
21355050800BSW5/8-1111030a 9,001
21355051600BSW 5/16-189020a 4,901
21355070800BSW 7/8-9 14036a 14,501
21355071600BSW 7/16-14 10022a 6,201
21355091600BSW 9/16-12 11030a 9,001
21355100000BSW 1''-8 16038a 14,501
