HEPYC | TAP HSS DIN352-Non Serial Form

Ref. 23210

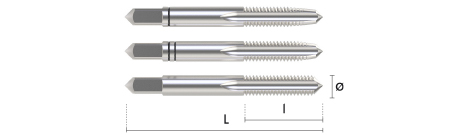

TAP HSS DIN352-Non Serial Form

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC

Code	Ø (mm)	L (mm)	l (mm)
23210002004	M2.00x0.40	36	8	a2.10	1
23210002504	M2.50x0.45	40	9	a2.10	1
23210003005	M3.00x0.50	40	11	a2.70	1
23210004070	M4.00x0.70	45	13	a3.40	1
23210005080	M5.00x0.80	50	16	a4.90	1
23210006010	M6.00x1.00	50	19	a4.90	1
23210007010	M7.00x1.00	50	19	a4.90	1
23210008010	M8.00x1.00	56	22	a4.90	1
23210008012	M8.00x1.25	56	22	a4.90	1
23210009010	M9.00x1.00	63	10	a5.50	1
23210009012	M9.00x1.25	63	22	a5.50	1
23210010012	M10.00x1.25	70	24	a5.50	1
23210010015	M10.00x1.50	70	24	a5.50	1
23210011012	M11.00x1.25	63	22	a6.20	1
23210011015	M11.00x1.50	70	24	a6.20	1
23210012010	M12.00x1.00	70	22	a7.00	1
23210012012	M12.00x1.25	70	22	a7.00	1
23210012015	M12.00x1.50	70	22	a7.00	1
23210012017	M12.00x1.75	75	29	a7.00	1
23210014012	M14.00x1.25	70	22	a9.00	1
23210014020	M14.00x2.00	80	30	a9.00	1
23210016020	M16.00x2.00	80	32	a9.00	1
23210018015	M18.00x1.50	80	22	a11.00	1
23210018025	M18.00x2.50	95	40	a11.00	1
23210020015	M20.00x1.50	80	22	a12.00	1
23210020020	M20.00x2.00	80	22	a12.00	1
23210020025	M20.00x2.50	95	40	a12.00	1
23210022025	M22.00x2.50	100	40	a14.50	1
23210024015	M24.00x1.50	90	22	a14.50	1
23210024020	M24.00x2.00	90	22	a14.50	1
23210024030	M24.00x3.00	110	50	a14.50	1
23210027030	M27.00x3.00	110	50	a16.00	1
23210030035	M30.00x3.50	125	56	a18.00	1
23210033035	M33.00x3.50	125	56	a20.00	1
23210036040	M36.00x4.00	150	63	a22.00	1
23210039040	M39.00x4.00	150	63	a24.00	1
23210042045	M42.00x4.50	150	63	a24.00	1
