Ref. 23150

TAP HSS DIN2181

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

High Speed Steel HSS
Tolerance 2B
Through hole

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

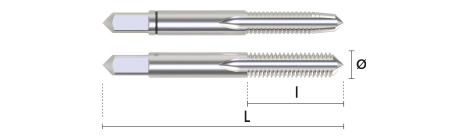

Code	Ø (mm)	L (mm)	l (mm)
23150110200	UN 1''.1/2-8h	125	40	a 24.00	1
23150110400	UN 1''1/4-8h	125	40	a 18.00	1
23150110800	UN 1''.1/8-8h	125	40	a 18.00	1
23150130400	UN 1''.3/4-8h	125	40	a 29.00	1
23150130800	UN 1''.3/8-8h	125	40	a 22.00	1
23150150800	UN 1''.5/8-8h	125	40	a 24.00	1
23150200000	UN 2''-8h	140	40	a 32.00	1
