Ref. 23085

TAP HSS DIN2181

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

High Speed Steel HSS
Tolerance 2B
Through holes
Left Hande

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

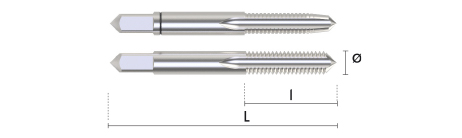

Code	Ø (mm)	L (mm)	l (mm)
23085010200	UNF 1/2-20	75	24	a 7.00	1
23085010400	UNF 1/4-28	50	18	a 4.90	1
23085030400	UNF 3/4-16	95	32	a 11.00	1
23085030800	UNF 3/8-24	63	22	a 5.50	1
23085050800	UNF 5/8-18	80	28	a 9.00	1
23085051600	UNF 5/16-24	56	22	a 4.90	1
23085070800	UNF 7/8-14	100	36	a 14.50	1
23085071600	UNF 7/16-20	63	22	a 6.20	1
23085091600	UNF 9/16-18	80	28	a 9.00	1
23085100012	UNF 1''-12	110	40	a 14.50	1
