Ref. 22150

TAP HSSE-PM DIN 376C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
15-45	15-25			10-25					15-40	15-30	20-40			10-20

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

HSSE-PM Powder Metallic Steel
Entry Form C (2-3h)
Tolerance 6GX
Thin shank
Blind and through holes with thread depth up to 1.5xd
Microfinisch finish
TiN coatin

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of1,100N / mm2, Stainless Steels, Titanium, Copper and Aluminum Alloys and their alloys.Elongation greater than 12% (A> 12%)

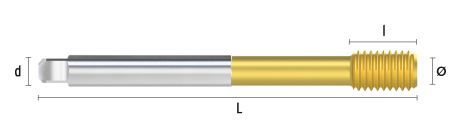

Code	Ø (mm)	L (mm)	l (mm)
22150012017	M12.00x1.75	110	24	a 7.00	1
