Ref. 25200

DIE HSS DIN 22568

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

High Speed Steel HSS
Tolerance 2

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

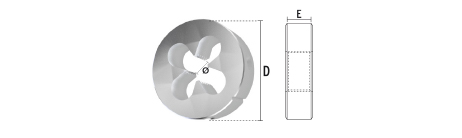

Code	Ø (mm)	L (mm)	l (mm)
25200110275	UN 1''1/2-8	75	30	1
25200110465	UN 1''1/4-8	65	25	1
25200110865	UN 1''1/8-8	65	25	1
25200130490	UN 1''3/4-8	90	36	1
25200130865	UN 1''3/8-8h	65	25	1
25200150875	UN 1''5/8-8	75	30	1
25200200090	UN 2''-8	90	36	1
