Ref. 11390

DRILL HSS DIN343

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
15-35				8-14		25-30	12-16		50-60	30-60		20-25

Vc (m/mm)
Best
Alternative

Technical Features:

High Speed Steel HSS
Drill-Reamer
Tip of 118º
Helix at 30º
taper shank
3 cut

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800 N / mm2

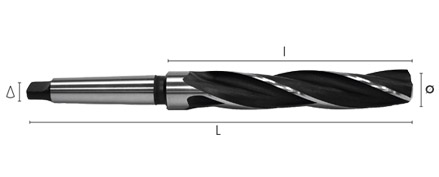

Code	Ø (mm)	L (mm)	l (mm)
11390001000	10.00	168	87	CM1	1
11390001100	11.00	175	94	CM1	1
11390001200	12.00	182	101	CM1	1
11390001300	13.00	182	101	CM1	1
11390001400	14.00	189	108	CM1	1
11390001500	15.00	212	114	CM2	1
11390001600	16.00	218	120	CM2	1
11390001700	17.00	223	125	CM2	1
11390001800	18.00	228	130	CM2	1
11390001900	19.00	233	135	CM2	1
11390002000	20.00	238	140	CM2	1
11390002100	21.00	243	145	CM2	1
11390002200	22.00	248	150	CM2	1
11390002300	23.00	253	155	CM2	1
11390002400	24.00	281	160	CM3	1
11390002500	25.00	281	160	CM3	1
11390002600	26.00	286	165	CM3	1
11390002700	27.00	291	170	CM3	1
11390002800	28.00	291	170	CM3	1
11390003000		--	--		0
11390003200	32.00	334	185	CM4	1
11390003400	34.00	339	190	CM4	1
11390003500	35.00	339	190	CM4	1
11390003600	36.00	344	195	CM4	1
11390003800	38.00	349	200	CM4	1
11390004000	40.00	349	210	CM4	1
