HEPYC | DRILL HSSCO DIN345N

Ref. 11220

DRILL HSSCO DIN345N

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
15-35	12-20	6-16		8-14		25-30	12-16		50-60	30-60		15-25

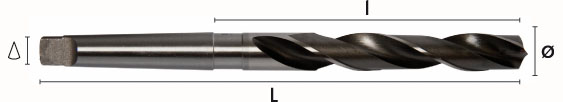

Code	Ø (mm)	L (mm)	l (mm)
11220001000	10.00	168	87	CM1	1
11220001050	10.50	168	87	CM1	1
11220001100	11.00	175	94	CM1	1
11220001150	11.50	175	94	CM1	1
11220001200	12.00	182	101	CM1	1
11220001250	12.50	182	101	CM1	1
11220001300	13.00	182	101	CM1	1
11220001350	13.50	189	108	CM1	1
11220001400	14.00	189	108	CM1	1
11220001450	14.50	212	114	CM2	1
11220001500	15.00	212	114	CM2	1
11220001550	15.50	218	120	CM2	1
11220001600	16.00	218	120	CM2	1
11220001650	16.50	223	125	CM2	1
11220001700	17.00	223	125	CM2	1
11220001750	17.50	228	130	CM2	1
11220001800	18.00	228	130	CM2	1
11220001850	18.50	233	135	CM2	1
11220001900	19.00	233	135	CM2	1
11220001950	19.50	238	140	CM2	1
11220002000	20.00	238	140	CM2	1
11220002050	20.50	243	145	CM2	1
11220002100	21.00	243	145	CM2	1
11220002150	21.50	248	150	CM2	1
11220002200	22.00	248	150	CM2	1
11220002250	22.50	253	155	CM2	1
11220002300	23.00	253	155	CM2	1
11220002350	23.50	276	155	CM3	1
11220002400	24.00	281	160	CM3	1
11220002450	24.50	281	160	CM3	1
11220002500	25.00	281	160	CM3	1
11220002550	25.50	286	165	CM3	1
11220002600	26.00	286	165	CM3	1
11220002650	26.50	286	165	CM3	1
11220002700	27.00	291	170	CM3	1
11220002750	27.50	291	170	CM3	1
11220002800	28.00	291	170	CM3	1
11220002850	28.50	296	175	CM3	1
11220002900	29.00	296	175	CM3	1
11220002950	29.50	296	175	CM3	1
11220003000	30.00	296	175	CM3	1
11220003100	31.00	301	180	CM3	1
11220003200	32.00	334	185	CM4	1
11220003300	33.00	334	185	CM4	1
11220003400	34.00	339	190	CM4	1
11220003500	35.00	339	190	CM4	1
11220003600	36.00	344	195	CM4	1
11220003700	37.00	344	195	CM4	1
11220003800	38.00	349	200	CM4	1
11220003900	39.00	349	200	CM4	1
11220004000	40.00	349	200	CM4	1
