HEPYC | DRILL HSS DIN345N

Ref. 11219

DRILL HSS DIN345N

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
15-35						25-30	12-16		50-60	30-60		20-25

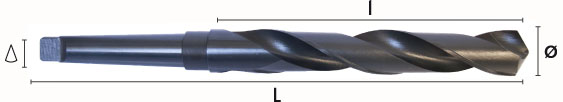

Code	Ø (mm)	L (mm)	l (mm)
11219000102	1/2''	182	101	CM1	1
11219000304	3/4''	238	140	CM2	1
11219000508	5/8''	218	120	CM2	1
11219000708	7/8''	248	150	CM2	1
11219000916	9/16''	212	114	CM2	1
11219001116	11/16''	228	130	CM2	1
11219001316	13/16''	243	145	CM2	1
11219001516	15/16''	281	160	CM3	1
11219001732	17/32''	189	108	CM1	1
11219001932	19/32''	218	120	CM2	1
11219002132	21/32''	223	125	CM2	1
11219002332	23/32''	233	135	CM2	1
11219002532	25/32''	238	140	CM2	1
11219002732	27/32''	248	150	CM2	1
11219002932	29/32''	253	155	CM2	1
11219003132	31/32''	281	160	CM3	1
11219003364	33/64''	182	101	CM1	1
11219003564	35/64''	189	108	CM1	1
11219003764	37/64''	212	114	CM2	1
11219003964	39/64''	218	120	CM2	1
11219004164	41/64''	223	125	CM2	1
11219004364	43/64''	223	125	CM2	1
11219004564	45/64''	228	130	CM2	1
11219004764	47/64''	233	135	CM2	1
11219004964	49/64''	238	140	CM2	1
11219005164	51/64''	243	145	CM2	1
11219005364	53/64''	243	145	CM2	1
11219005564	55/64''	248	150	CM2	1
11219005764	57/64''	253	155	CM2	1
11219005964	59/64''	276	155	CM3	1
11219006164	61/64''	281	160	CM3	1
11219006364	63/64''	286	160	CM3	1
11219010000	1''	291	170	CM3	1
11219010102	1 1/2''	349	200	CM4	1
11219010104	1 1/4''	306	185	CM3	1
11219010108	1 1/8''	296	175	CM3	1
11219010116	1 1/16''	291	170	CM3	1
11219010304	1 3/4''	359	210	CM4	1
11219010308	1 3/8''	339	190	CM4	1
11219010316	1 3/16''	301	180	CM3	1
11219010508	1 5/8''	354	205	CM4	1
11219010516	1 5/16''	334	185	CM4	1
11219010532	1 5/32''	296	175	CM3	1
11219010716	1 7/16''	344	195	CM4	1
11219010732	1 7/32''	301	180	CM3	1
11219010916	1 9/16''	349	200	CM4	1
11219010932	1 9/32''	334	185	CM4	1
11219011116	1 11/16''	359	210	CM4	1
11219011132	1 11/32''	339	190	CM4	1
11219011332	1 13/32''	344	195	CM4	1
11219020000	2''	374	225	CM4	1
