Ref. 11820

DRILL HM-MD

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
															25-30	15-25	10-15

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Integral hard metal HM
Point at 120º
Helix at 0º
TIN coatin

Applications:

Special to extract broken males

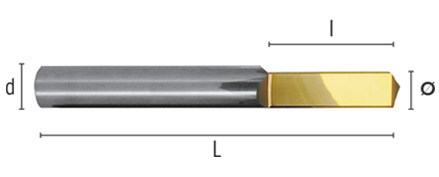

Code	Ø (mm)	L (mm)	l (mm)
11820000025	2.5	38	10	M3	1
11820000033	3.3	46	14	M4	1
11820000042	4.2	50	19	M5	1
11820000050	5	50	23	M6	1
11820000068	6.8	60	23	M8	1
11820000085	8.5	80	25	M10	1
11820000102	10.2	80	35	M12	1
