HEPYC | DRILL HSSCO (8%) DIN338N

Ref. 11055

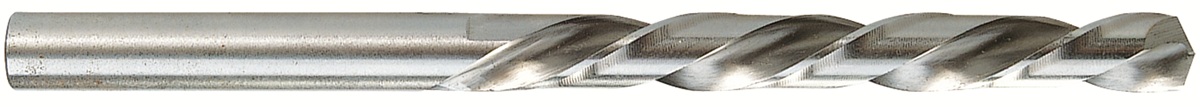

DRILL HSSCO (8%) DIN338N

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
15-35	12-20	6-16	6-10	8-14		25-30	12-16		50-60	30-60		20-25	4-6		4-6

Technical Features:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 1,100 N / mm2

Code	Ø (mm)	L (mm)	l (mm)
16010000200	2	49	24	10
16010000220	2,2	53	27	10
16010000250	2,5	57	30	10
16010000280	2,8	61	33	10
16010000300	3	61	33	10
16010000310	3,1	65	36	10
16010000320	3,2	65	36	10
16010000330	3,3	70	39	10
16010000350	3,5	70	39	10
16010000400	4	75	43	10
16010000420	4,2	75	43	10
16010000450	4,5	80	47	10
16010000470	4,7	80	47	10
16010000480	4,8	86	52	10
16010000500	5	86	52	10
16010000550	5,5	93	57	10
16010000570	5,7	93	57	10
16010000580	5,8	93	57	10
16010000600	6	93	57	10
16010000630	6,3	101	63	10
16010000650	6,5	101	63	10
16010000670	6,7	101	63	10
16010000680	6,8	109	69	10
16010000700	7	109	69	10
16010000800	8	117	75	10
16010000850	8,5	117	75	10
16010000900	9	125	81	10
16010000950	9,5	125	81	10
16010001000	10	133	87	5
16010001050	10,5	133	87	5
16010001100	11	142	94	5
16010001150	11,5	142	94	5
16010001200	12	151	101	5
