Ref. 51190

COUNTERSINK HSSCO DIN335C

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
25-35	15-20	6-10		6-12	4-6	20-30	12-16	6-10	20-100	30-75	75-115	15-90	3-8	3-12

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High Speed Steel HSSE
Cylindrical shank
3 cutting lips
90º angle
TAILN coatin

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a resistance of 1100 N / mm2

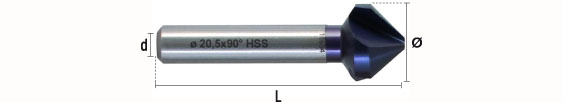

Code	Ø (mm)	L (mm)	l (mm)
51190000630	6.30	45	--	d 5	1
51190000830	8.30	50	--	d 6	1
51190001040	10.40	50	--	d 6	1
51190001240	12.40	56	--	d 8	1
51190001650	16.50	60	--	d 10	1
51190002050	20.50	63	--	d 10	1
51190002500	25.00	67	--	d 10	1
51190003000	30.00	71	--	d 12	1
