Ref. 51050

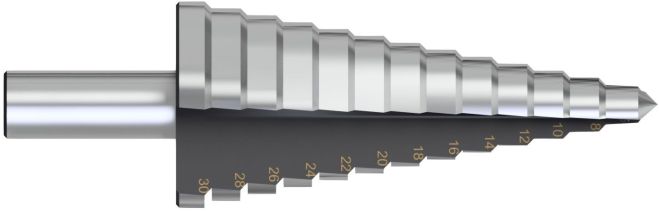

STEP-DRILL HSS

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
20-30	12-18			4-10		15-24	9-13		15-60	25-45	40-60	12-50		4-10

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

High Speed Steel HSS
Tip at 118º
2 cutting lip

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a resistance of 800 N / mm2

Code	Ø (mm)	L (mm)	l (mm)
51050041201	4.00-12.00x1	69	--	d 6	1
51050041202	4.00-12.00x2	69	--	d 6	1
51050042002	4.00-20.00x2	75	--	d 8	1
51050063002	6.00-30.00x2	95	--	d 10	1
51050122001	12.00-20.00x1	75	--	d 9	1
51050203001	20.00-30.00x1	93	--	d 12	1
51050304001	30.0-40.00x1	93	--	d 12	1
51050405001	40.00-50.00x1	97	--	d 12	1
51050506001	50.00-60.00x1	97	--	d 13	1
