Ref. 51030

END MILL CONIQUE HSS

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
25-35	15-20			6-12		20-30	12-16		20-70	30-60	60-80	15-50		4-10

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

High Speed Steel HSS
Tip at 118º
Countershinking at 20º
2 cutting lips
TIALN coatin

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a resistance of 800 N / mm2

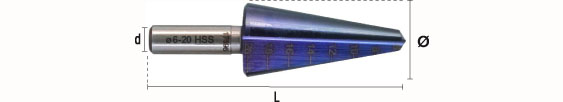

Code	Ø (mm)	L (mm)	l (mm)
51030030140	3.00-14.00	62	--	d 6	1
51030060200	6.00-20.00	70	--	d 8	1
51030060300	6.00-30.00	106	--	d 10	1
51030160300	16.00-30.00	78	--	d 10	1
51030260400	26.00-40.00	86	--	d 12	1
51030360500	36.00-50.00	90	--	d 12	1
51030460600	46.00-60.00	94	--	d 13	1
