HEPYC | QUATROPLUS

Ref. 12230

QUATROPLUS

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC

Vc (m/mm)
Optimum
Alternatif

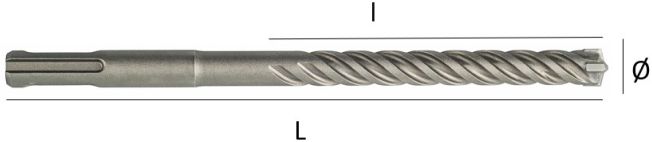

Code	Ø (mm)	L (mm)	l (mm)
12230040011	4x115	115	50	1
12230040016	4x165	165	100	1
12230050011	5x110	110	50	1
12230050016	5x160	160	100	1
12230050021	5x210	210	150	1
12230050026	5x265	265	200	1
12230050031	5x315	315	250	1
12230050046	5x465	465	400	1
12230055011	5.5x110	110	50	1
12230055016	5.5x160	160	100	1
12230055021	5.5x210	210	150	1
12230060011	6x110	110	50	1
12230060016	6x160	160	100	1
12230060021	6x210	210	150	1
12230060026	6x265	265	200	1
12230060031	6x315	315	250	1
12230060046	6x465	465	400	1
12230065011	6.5x115	115	50	1
12230065016	6.5x165	165	100	1
12230065021	6.5x215	215	150	1
12230070011	7x110	110	50	1
12230070016	7x165	165	100	1
12230070021	7x215	215	150	1
12230080011	8x110	110	50	1
12230080016	8x160	160	100	1
12230080021	8x210	210	150	1
12230080026	8x265	265	200	1
12230080031	8x315	315	250	1
12230080036	8x365	365	300	1
12230080046	8x465	465	400	1
12230080061	8x615	615	550	1
12230090016	9x165	165	100	1
12230090021	9x215	215	150	1
12230100011	10x110	110	50	1
12230100016	10x160	160	100	1
12230100021	10x210	210	150	1
12230100026	10x265	265	200	1
12230100031	10x315	315	250	1
12230100036	10x365	365	300	1
12230100046	10x465	465	400	1
12230100061	10x615	615	550	1
12230110016	11x165	165	100	1
12230110021	11x215	215	150	1
12230120016	12x160	160	100	1
12230120021	12x210	210	150	1
12230120026	12x265	265	200	1
12230120031	12315	315	250	1
12230120036	12x365	365	300	1
12230120046	12x465	465	400	1
12230120061	12x615	615	550	1
12230140016	14x165	165	100	1
12230140021	14x210	210	150	1
12230140026	14x265	265	200	1
12230140031	14x315	315	250	1
12230140036	14x365	365	300	1
12230140046	14x645	465	400	1
12230140061	14x615	615	550	1
12230150016	15x165	165	100	1
12230150026	15x260	260	200	1
12230150046	15x465	465	400	1
12230160021	16x210	210	150	1
12230160025	16.00	265	200	1
12230160031	16x315	315	250	1
12230160036	16x365	365	300	1
12230160045	16.00	465	400	1
12230160061	16x615	615	550	1
12230180020	18x200	200	150	1
12230180030	18x300	300	250	1
12230180045	18.00	450	400	1
12230180060	18x600	600	550	1
12230200020	20x200	200	150	1
12230200030	20x300	300	250	1
12230200045	20.00	450	400	1
12230200060	20x600	600	550	1
12230220025	22.00	250	200	1
12230220045	22.00	450	400	1
12230220060	22x600	600	550	1
12230240025	24.00	250	200	1
12230240045	24.00	450	400	1
12230250025	25.00	250	200	1
12230250045	25.00	450	400	1
12230260025	26x250	250	200	1
12230260045	26x450	450	400	1

Área clientes

Ref. 12230

Caracteristiques Techniques:

Applications:
