Ref. 27040

TAP-INSERT HSS ISO 529

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

High Speed Steel HSS
Entry form D(3,5-5h)
Middle class Toleranc

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of 800N / mm2

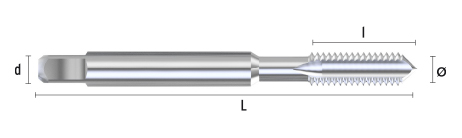

Code	Ø (mm)	L (mm)	l (mm)
27040010200	BSW 1/2-12	102	32	a 10.00	1
27040010400	BSW 1/4-20	72	22	a 6.30	1
27040010800	BSW 1/8-40	53	13	a 3.15	1
27040011160	BSW 11/16-11	112	37	a 11.20	1
27040030400	BSW 3/4-10	118	38	a 12.50	1
27040030800	BSW 3/8-16	85	25	a 6.30	1
27040031600	BSW 3/16-24	66	19	a 5.00	1
27040050800	BSW 5/8-11	112	37	a 11.20	1
27040051600	BSW 5/16-18	80	24	a 8.00	1
27040070800	BSW 7/8-9	130	45	a 14.00	1
27040071600	BSW 7/16-14	95	30	a 9.00	1
27040091600	BSW 9/16-12	102	32	a 10.00	1
27040100000	BSW 1''-8	138	48	a 16.00	1
