Ref. 21340

TAP HSSE

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25							10-15			10-20

Vc (m/mm)
Best
Alternative

buy Product

Technical Features:

Cobalt High Speed Steel HSSE
Straigh entry 16-18h
Tolerance 6H
Thin shank
Extra longue series
For threading nut

Applications:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength,

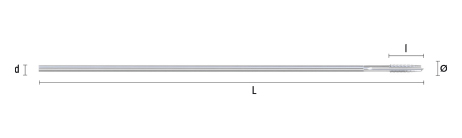

Code	Ø (mm)	L (mm)	l (mm)
21340003005	M3.00x0.50	280	12	d 2.70	1
21340004070	M4.00x0.70	280	17	d 2.10	1
21340005008	M5.00x0.80	280	20	d 2.70	1
21340006010	M6.00x1.00	280	25	d 3.40	1
21340008012	M8.00x1.25	280	31	d 4.90	1
21340010015	M10.00x1.50	280	37	d 5.50	1
21340012017	M12.00x1.75	420	43	d 7.00	1
21340014020	M14.00x2.00	420	50	d 9.00	1
21340016020	M16.00x2.00	420	50	d 9.00	1
21340018025	M18.00x2.50	530	62	d 14.2	1
21340020025	M20.00x2.50	530	63	d 12.00	1
21340022025	M22.00x2.50	530	62	d 18.0	1
21340024030	M24.00x3.00	530	75	d 19.2	1
