HEPYC | TAP HSSSE JIS

Ref. 22700

TAP HSSSE JIS

P				M		K			N				S		H
>800	>1.000	>1.200	>1.400	>950	>1.200	>500	>800	>1.400	Al	Cu	Mg/Zn	Plastic	Ti	Ni	50 HRC	55 HRC	60 HRC
10-25	12-18			5-10			15-20		15-20	15-25		12-18

Technical Features:

Soft Magnetic Steels, Construction and Cementation Steels, and Non-Alloyed and Alloyed Carbon Steels up to 800N / mm2 Strength,

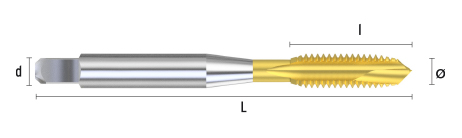

Code	Ø (mm)	L (mm)	l (mm)
22701003005	M3.00x0.50	46	11	a 3.20	1
22702003005	M4.00x0.70	46	11	a 3.20	1
22702004007	M5.00x0.80	52	13	a 4.00	1
22702005008	M6.00x1.00	60	16	a 4.50	1
22702006010	M8.00x1.25	62	19	a 4.50	1
22702008012	M10.00x1.50	70	22	a 5.00	1
22702010015	M12.00x1.75	75	24	a 5.50	1
22702012017	M3.00x0.50	82	29	a 6.50	1
22703003005	M4.00x0.70	46	11	a 3.20	1
22703004007	M5.00x0.80	52	13	a 4.00	1
22703005008	M6.00x1.00	60	16	a 4.50	1
22703006010	M8.00x1.25	62	19	a 4.50	1
22703008012	M10.00x1.50	70	22	a 5.00	1
22703010015	M10.00x1.50	75	24	a 5.50	1
22703012017	M10.00x1.50	82	29	a 6.50	1
22704012017	M12.00x1.75	82	29	a 6.50	1
22704014020	M14.00x2.00	88	30	a 8.00	1
22704016020	M16.00x2.00	95	32	a 10.00	1
22704018025	M18.00x2.50	100	37	a 11.00	1
22704020025	M20.00x2.50	105	37	a 12.00	1
